Dây Cáp điện mặt trời 4.0


LEADER® Solar wire is  used in photovoltaic power generation and solar system,interconnects solar panels and electrical components in the photovoltaic system.The size from 18AWG to 4/0AWG ,suitable for outdoor extreme
environments,UV,ozone,hydrolysis resistant.

  • Halogen Free,Flame Retardant,ROHS
  • 25 Years of Production Experience In Power Cable
  • Double Insulation Suitable for outdoor harsh environments
  • Stable connection & Reducing maintenance cost
  • UL4730 Approved &  Up to 2000V DC
  • Free Sample is available

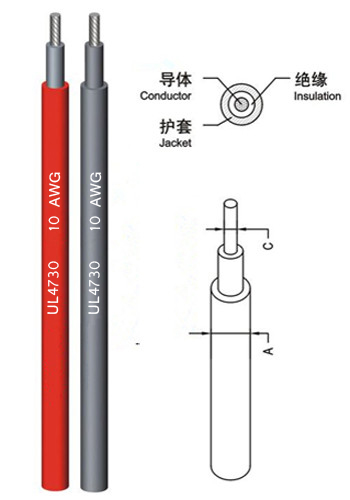

Specification of solar wire

Solar wire 10AWG


Conductor Tinned fine Re copper strands,according to VDE0295/IEC60228.Class5
Insulation Polyolefin Copolymer electron-beam cross-linked
Sheath Jacket Polyolefin Copolymer electron-beam cross-linked
Nominal Voltage Uo/U=600V/1000VAC,1000/1800VDC
Test voltage 6500V,50Hz,5Min
Temperature Rating -40oC-125oC, More Than 25 Years (TUV)
Fire Performance IEO 60332-1
 Smoke Emission IEC61034,EN 50268-2
Low Fire Load  DIN 51 900
Certification UL4730
